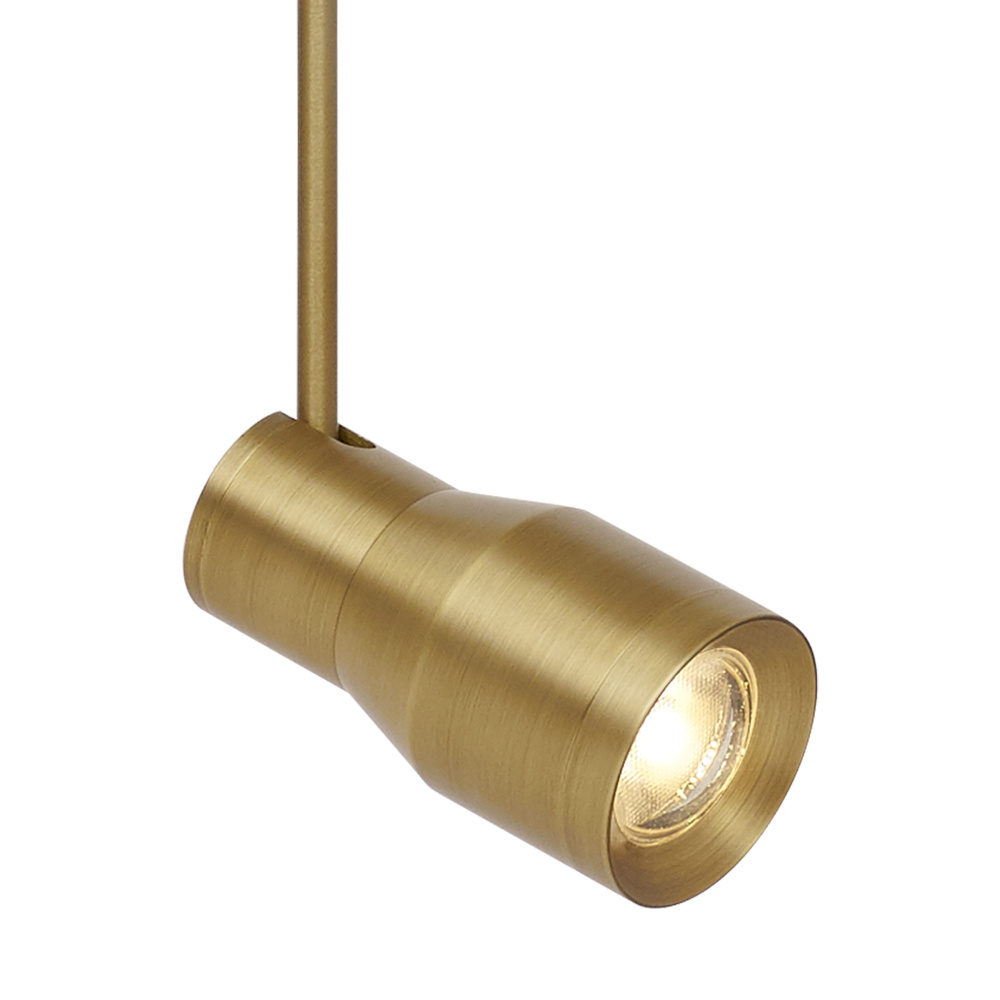

Ace Head (70PKF84)

Image may not reflect selected features

No Image
Available


BASE PRICE:

279

/ / 1

($279.99 / 1)

WAS

Call for Price

Item #:

70PKF84

Dimensions:

Height: 1.90"

Width: 1.90"

Length: 3.60"

Finish:

Changes Other Selections...

Kelvin:

Changes Other Selections...

Availability:

Manufacturer has 65 items available.
More Items available 12/15/2025.

Description

Details

Downloads

The Ace Task Head light by Sean Lavin for Visual Comfort Modern is simply efficient featuring a classic adjustable spot head design with variable stem lengths and beam spread choices. Available in modern finishes. This practical and efficient task head scales at 3.5" in length and 1.8" in width making it ideal for residential and commercial lighting spaces. Combine the Ace Task Head with our complementary MonoRail system for even greater design customization in your unique space. The Ace comes with your choice of two integrated LED lamp options, both lamps are fully dimmable to create the desired ambiance in your any space.

Internal #:

70PKF84

Category:

Track Ltg.

Subcategory:

Track Heads

Finish:

Brass

Style:

Contemporary , Modern

Option:

Title 24 , LED

Voltage:

10-99

Lumens:

450-800

Kelvin:

2501-3000

Location Rating:

Dry Rated

Category:

Low-Voltage Heads

Finish:

Plated Brass

Style:

Contemporary

Option:

LED , Title 24

Family:

Ace

Voltage:

12 V

Shade:

Metal Task Head

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Shape:

Integrated LED

Bulb Type:

LED

Designer:

Sean Lavin

Diameter:

1.9

Introduction Date:

12/01/2022

Kelvin:

3000

Keyword(s):

Commercial Space, Family Room, Office

Lumens / Light Output:

518.5

Material:

Metal

Max Height:

Ship Carton Height:

Ship Carton Length:

Ship Carton Width:

Ship Weight:

2.5

Vendor Ship Method:

UPS, FedEx

Warranty:

5 Years

Weight:

1.5

ADA Compliant:

Adjustable Head:

Yes

Battery Included:

Bulb CRI:

Bulb Included:

Yes

Bulb Wattage:

9.4 W

Cable Field Cuttable:

Country of Origin:

Dark Sky:

Dimmer Type:

ELV, TRIAC

Efficacy:

55.2

Energy Star:

Hardware Material:

Metal

IP65 Rated:

Is Solar Powered:

L70:

>50000

LED:

Yes

Location Rating:

Dry Rated

Max Wattage:

9.4 W

MIN Height:

Photocell Included:

Prop 65:

Replaceable Lamp:

Reversable:

Safety Rating:

ETL Approved

Shade Diameter:

1.9

Shade Height:

1.9

Shade Length:

3.6

Shade Material:

Metal

Shade Width:

1.9

Sloped Ceiling Compatible:

Stocking Type:

Assemble to Order

Style-2:

Mid-Century, Modern

SYSTEM:

Monorail

Title 20:

Title 24:

Yes

Total Wattage:

9.4 W

Warm Color Dimming:

Additional Information:

4 watt, 518
5 delivered lumens, 2700K or 3000K, LED module
5 year warranty with no lamping option. 5 year warranty with LED lamping option, visit techlighting.com for more warranty details
Ace head can pivot 90° (horizontal to straight down)
Ace head only compatible with AC transformers
Adjustable spot head design and variable stem length options available
As a general rule when using the Ace head, we do not recommend using greater than 33% of the maximum wattage specified for the low voltage transformer due to inrush current requirements
Available in modern finishes
Compatible with MOCGG, MOCSF, MOCLL, MOCEC, MOCLS1 AND MOC LS12 lenses
Dimmable with most LED compatible or ELV and Triac dimmers
Efficient, classic adjustable spot head design
For assistance in calculations, please contact Technical Support
Fully dimmable integrated LED lamp
Idea for residential and commercial lighting applications
Includes 12 volt 9
Integrated lens holder accommodates up to (2) lenses and louvers (sold separately)

Click Here to View Spec Sheet
