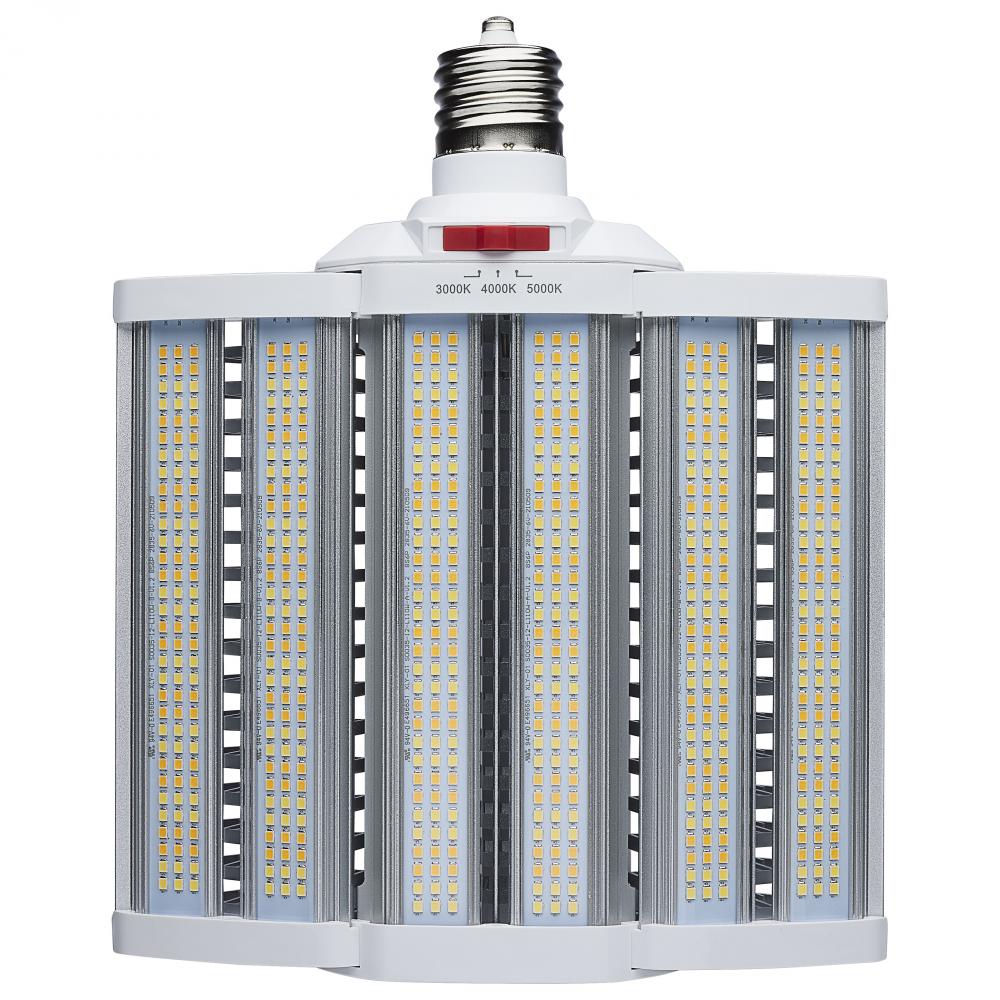

LED Shoe Box Lamp; 90/100/110 Wattage Selectable; 3K/4K/5K CCT Selectable; 120-277 Volt; White (X6PP0)

Image may not reflect selected features

No Image
Available

LED Shoe Box Lamp; 90/100/110 Wattage Selectable; 3K/4K/5K CCT Selectable; 120-277 Volt; White

BASE PRICE:

209

/ / 1

($209.99 / 1)

WAS

Call for Price

Item #:

X6PP0

Dimensions:

Width: 8.90"

Finish Family:

White

Availability:

Manufacturer has 562 items available.

Description

Details

Downloads

LED Shoe Box Lamp; 90/100/110 Wattage Selectable; 3K/4K/5K CCT Selectable; 120-277 Volt; White Finish

Internal #:

X6PP0

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/5000K

Bulb Shape:

Corncob

Diameter:

8.9

EA Length:

12.68

Harmonized Codes:

8539.52.0091

Length:

11.26

Lumens:

13500L/14500L/15400L

Shap Carton Width:

5.71

Ship Carton Height:

6.46

Ship Weight:

4.67

Warranty:

5-Years

Weight:

3.68

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required

Beam Spread:

180

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.2707

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Natural Light

Country Of Origin:

Cambodia

CRI:

80+

Dimmable Function:

Only dimmable through wattage selection switch on lamp

Dimming Type:

Step Dimming

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-7KJXW6

DLC Primary Use:

Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)

Efficacy:

150.00/145.00/140.00 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

CCT and Wattage Selectable

Feature 2:

Expandable Light Panels

Feature 3:

320 Degree Rotating EX39 Base

Feature 4:

Integrated 4kV Surge Protection

Feature 5:

Advanced Heat Dissipation

Feature 6:

Type B Ballast Bypass

Feature 7:

5 Year Warranty

Has Camera:

Has Emergency Battery:

HID Equivalent:

250W/320W/400W

Housing Color:

White

Incandescent Equivalent:

750W

Indoor Outdoor:

Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens Material:

Polycarbonate (PC)

Location Rating:

Damp

Long Description:

SATCO NUVO's S28938R1 LED Hi-Pro Lamp offers a 320 degree rotating EX39 base making the installation of this lamp easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each

Material:

Aluminum

Minimum Compartment Size:

Length: 11 in. Width: 11 in. Height: 11.6 in.

Operating Frequency:

50/60Hz

Operating Temp:

-30C (-22F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED Hi-Pro Lamps offer a 320 degree rotating EX39 base making the installation of these lamps easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique

SDS class:

LED_Lamp

Short Description:

110W/LED/HID/SB/3CCT/EX39

Style:

Utility

Surge Protection:

Built-in surge protection - 4KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Watts:

90W/100W/110W
