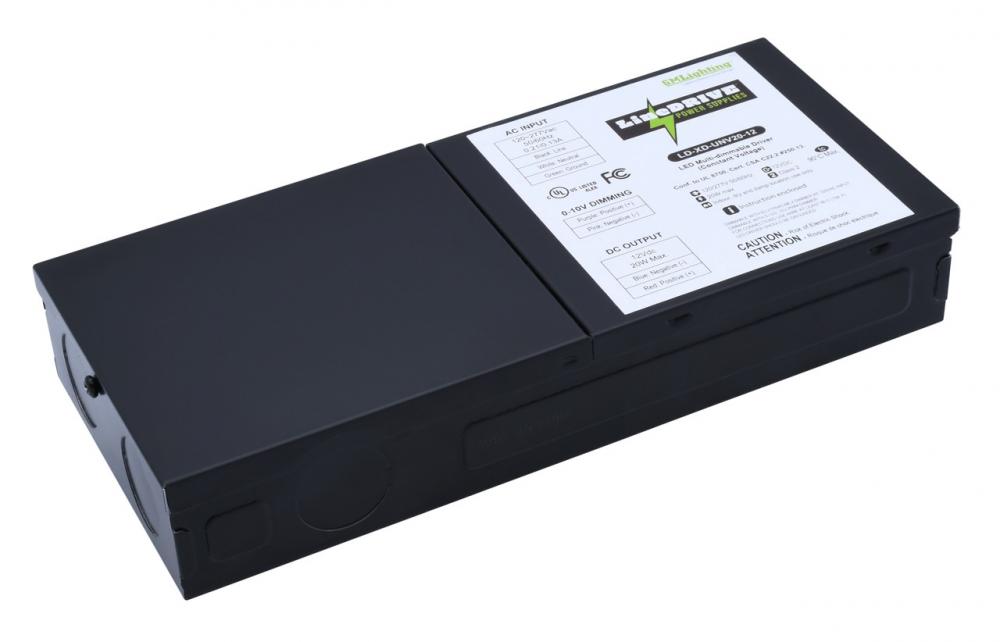

GM's Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
Category:
Specialty Items
Subcategory:
Power Supplies
Location Rating:
Dry Rated
Location Rating:
Dry Rated
Additional Information:
- Compatible with typical phase dimmers and 0-10V controls
- Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming (Minimum dimming: 1%)
- Input: 120V / 277V
- Integrated wiring compartments with separate line voltage and low voltage sections
- Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
- Multi-output driver has 3 output channels for powering several Class 2 loads from one unit
- Output: Class 2, 24VDC, constant voltage
- Over-current, over-voltage and over-temperature protection
- Stable operation, flicker-free dimming
