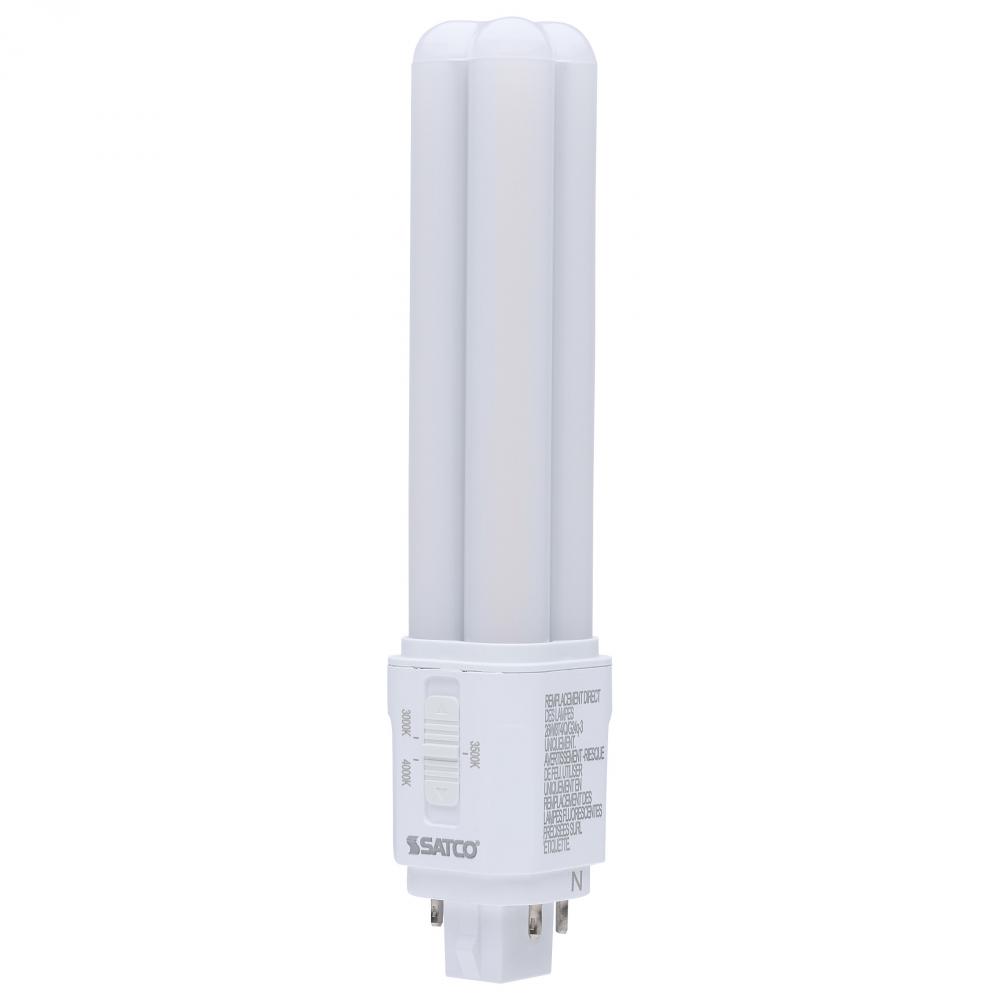

9.5 Watt LED PL; 30K/35K/40K CCT Selectable; G24q Base; Type A/B; 120-277 Volt (X6TMW)

Image may not reflect selected features

No Image
Available

9.5 Watt LED PL; 30K/35K/40K CCT Selectable; G24q Base; Type A/B; 120-277 Volt

BASE PRICE:

/ / 1

($21.99 / 1)

WAS

Call for Price

Item #:

X6TMW

Dimensions:

Width: 1.40"

Finish Family:

White

Availability:

Manufacturer has 153 items available.

Description

Details

Downloads

9.5 Watt LED PL; 30K/35K/40K CCT Selectable; G24q Base; Type A/B; 120-277 Volt

Internal #:

X6TMW

Category:

Light Bulbs

Subcategory:

LED Bulbs

Category:

LED

Sub-Category:

LED CFL Replacements Pin Based

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/3500K/4000K

Bulb Shape:

Diameter:

1.4

EA Length:

1.46

Harmonized Codes:

8539.52.0091

Length:

6.9

Lumens:

1100L/1150L/1200L

Shap Carton Width:

1.46

Ship Carton Height:

7.01

Ship Weight:

0.26

Warranty:

5-Years

Weight:

0.22

BAA Compliant:

Ballast Bypass Direct:

Dual

Ballasting Requirements:

Ballast required (Type A) or Ballast Bypass (Type B)

Beam Spread:

360

Bulb ANSI Base:

G24q

Bulb Base:

G24q (4-Pin)

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.0086

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm to Cool White

Country Of Origin:

Thailand

CRI:

80+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

Only in Type A mode; Check Ballast MFG for Dimmer Compatibility

Dimming Type:

Triac

Efficacy:

115.79/135.29/126.32 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

3 CCT Selectable

Feature 2:

Type A/B Ballast Bypass

Feature 3:

360 Degree Beam Spread

Feature 4:

Suitable for Use in Enclosed Fixtures

Feature 5:

G24q 4-Pin Base

Feature 6:

Damp Location Rated

Feature 7:

50,000 Hour Functional Life

Feature 8:

5 Year Warranty

Flourescent Equivalent:

18W/26W/32W

Has Camera:

Has Emergency Battery:

Housing Color:

White

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type A/B

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

SATCO NUVO's S29854 9.5-watt PL lamp offers a versatile replacement for traditional 18W, 26W, and 32W CFL lamps. Designed with a G24q (4-pin) base, it supports both Type A and Type B ballast bypass operation, making it ideal for retrofitting without re

Material:

Aluminum / Plastic

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's innovative CFL replacement lamps provide an efficient solution for upgrading older 18W, 26W, or 32W CFL fixtures to the energy-saving advantages of LED technology. These lamps are compatible with three distinct ballast options, providing f

SDS class:

LED_Lamp

Short Description:

9.5W/LED/CFL/3CCT/DUAL/4P

Style:

Transitional

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Watts:

9.5W
