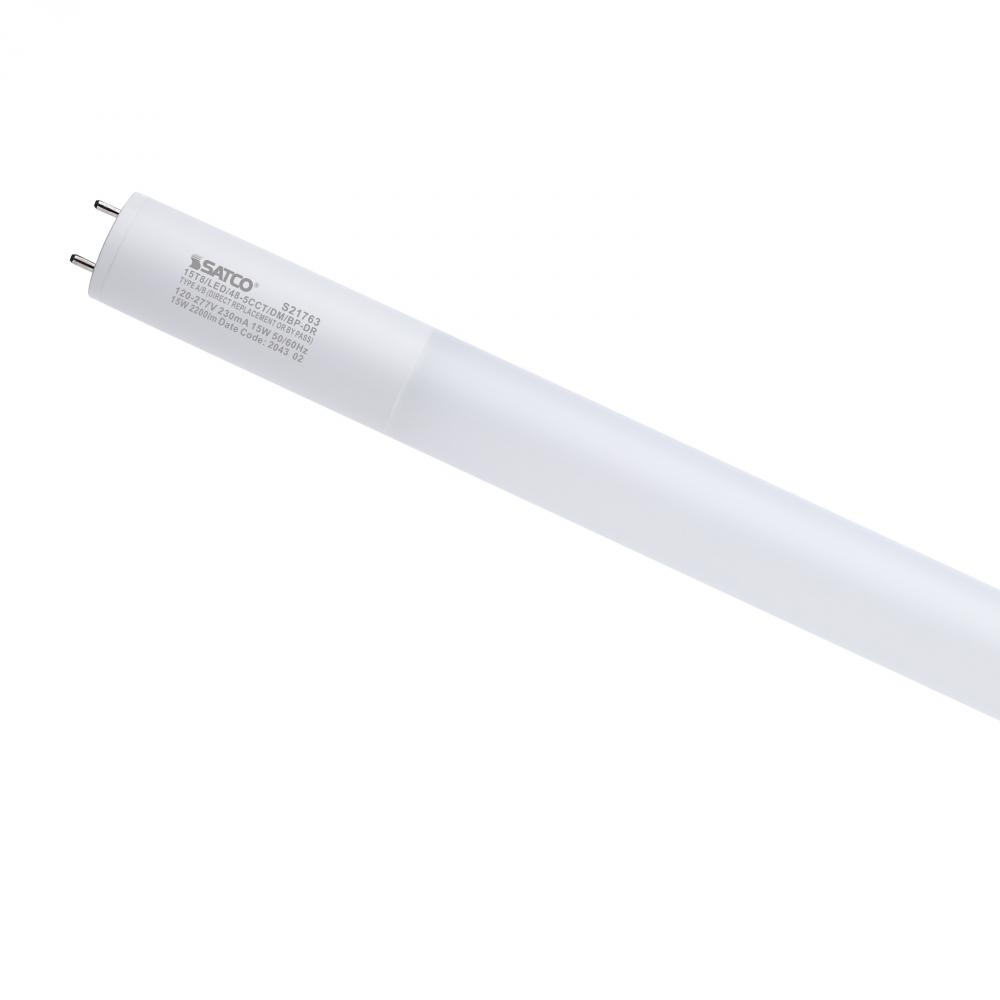

15 Watt T8 LED; 48-Inch; 30K/35K/40K/50K/65K CCT Selectable; G13 Base; Ballast Type A/B; Frost (X6RP4)

Image may not reflect selected features

No Image
Available

15 Watt T8 LED; 48-Inch; 30K/35K/40K/50K/65K CCT Selectable; G13 Base; Ballast Type A/B; Frost

BASE PRICE:

/ / 1

($17.99 / 1)

WAS

Call for Price

Item #:

X6RP4

Dimensions:

Width: 1.00"

Finish Family:

White

Availability:

Manufacturer has 51342 items available.

Description

Details

Downloads

15 Watt T8 LED; 48-Inch; 30K/35K/40K/50K/65K CCT Selectable; G13 Base; Ballast Type A/B; Frost Finish; 120-277 Ranged Voltage; Glass with PET Coating

Internal #:

X6RP4

Category:

Light Bulbs

Subcategory:

LED Bulbs

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/3500K/4000K/5000K/6500K

Bulb Shape:

Diameter:

1.0

EA Length:

48.67

Harmonized Codes:

8539.52.0051

Length:

48.67

Lumens:

2200L

Shap Carton Width:

1.0

Ship Carton Height:

1.0

Ship Weight:

0.51

Warranty:

5-Years

Weight:

0.49

BAA Compliant:

Ballast Bypass Direct:

Dual

Ballasting Requirements:

Ballast required (Type A) or Ballast Bypass (Type B)

Beam Spread:

170

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.0282

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Daylight

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

Only in Type A mode; Check Ballast MFG for Dimmer Compatibility

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-BP3J9K

DLC Primary Use:

Dual Mode Internal Driver (UL Type A and Type B)

Efficacy:

146.67 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

Dual Mode Type A + B

Feature 2:

5 CCT Selectable

Feature 3:

Range Voltage 120V-277V

Feature 4:

Up to 146 LPW

Feature 5:

170-Degree Beam Angle

Feature 6:

DLC Listed

Feature 7:

Dimmable

Feature 8:

Damp Location Rated

Flourescent Equivalent:

25W/28W/30W/32W

Has Camera:

Has Emergency Battery:

Housing Color:

White

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type A/B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

SATCO NUVO's LED T8 Lamps - Type A + B are versatile for use in ballast bypass or ballast compatible configurations. High-performing, these lamps are damp location rated for reliable use in humid areas. With five selectable CCTs at installation, and di

Material:

Glass

Nominal Length:

48.0

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

15T8/LED/48-5CCT/DM/BP-DR

Style:

Utility

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

20%

Wattage Selectable:

Watts:

15W
