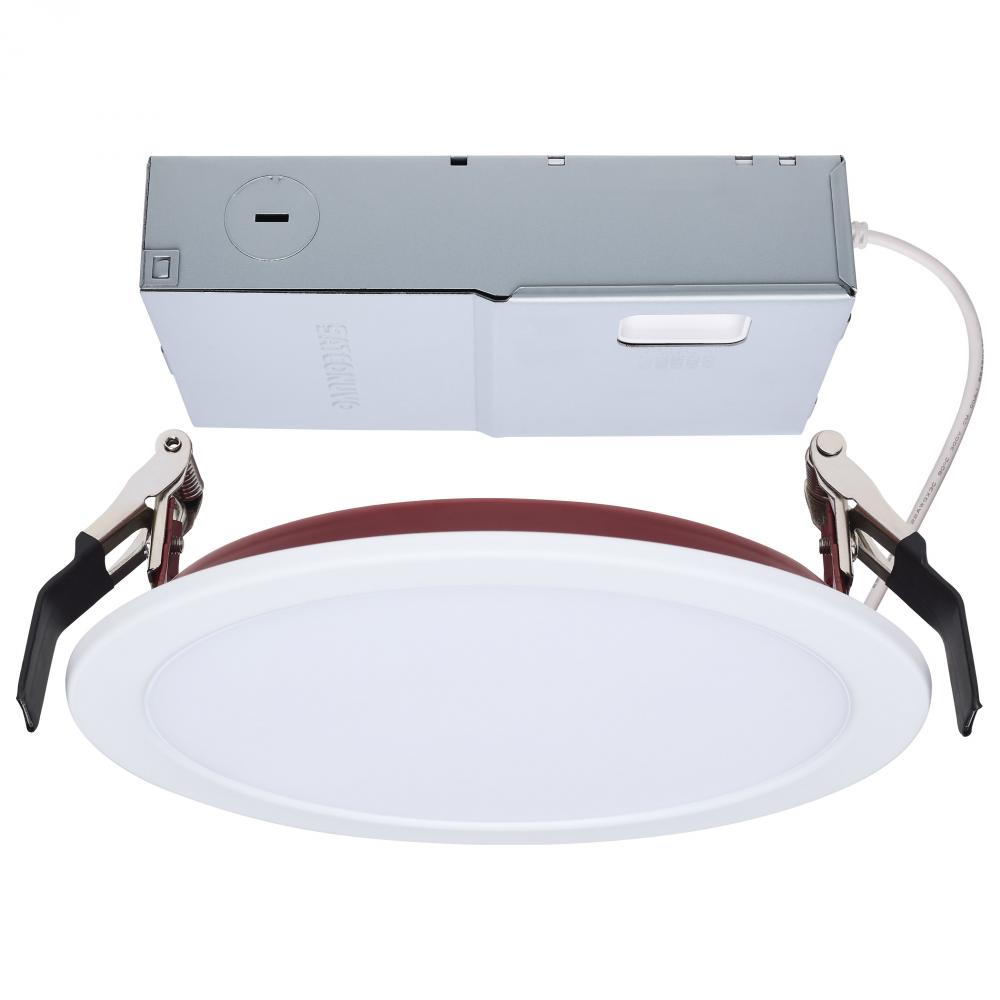

13 Watt LED; Fire Rated 6 Inch; Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish; (X9RCZ)

Image may not reflect selected features

No Image
Available

13 Watt LED; Fire Rated 6 Inch; Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish;

BASE PRICE:

/ / 1

($41.99 / 1)

WAS

Call for Price

Item #:

X9RCZ

Dimensions:

Height: 0.88"

Width: 6.79"

Finish:

White / Red

Availability:

Manufacturer has 1764 items available.

Recommended Items

Description

Details

Downloads

13 Watt LED; Fire Rated 6 Inch; Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish; CCT Selectable; 120-277 Volts; 0-10V Dimmable

Internal #:

X9RCZ

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Option:

Energy Star , LED , Prop 65

Category:

Recessed

Sub Category:

Direct Wire

Style:

Specialty

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

6.79

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.6010

Lumens:

1100L

Ship Carton Height:

7.48

Ship Carton Length:

7.87

Ship Carton Width:

2.95

Warranty:

5-Years

Air Tight:

Yes

Amps:

0.108-0.047A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

110

CA Prop-65:

Lead

Carton Cubic Feet:

0.1005

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2025 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

5.875 in. Cutout

Closet Rated:

Yes

Connection:

Hardwire

Country Of Origin:

Cambodia

CRI:

90+

Dark Sky Rated:

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V Dimming

Efficacy:

84.62 LPW

ES Category:

Downlight Recessed

ES Unique ID:

4479605

FCC Compliant:

Yes

Feature 1:

Fire rated up to 2-hours

Feature 10:

5 Year Warranty

Feature 2:

Red painted backplate for easy identification

Feature 3:

5 CCT Selectable

Feature 4:

90 CRI High Quality Illumination

Feature 5:

6" Flat Lens Model

Feature 6:

120â€“277 Volts with 0â€“10V Dimming

Feature 7:

Wet location rated

Feature 8:

IC Rated and AirTight

Feature 9:

50,000 Hour Functional Life

Finish Family:

White

Fixture shape:

Round

Flicker Free:

Yes

Has Emergency Battery:

IC Rated:

Yes

Incandescent Equivalent:

75W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Finish:

Frosted

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO NUVO'S S11869R1 Fire Rated Recessed Downlight is engineered for fire-resistant ceiling construction and certified for 2-hour fire protection when installed in most floor-ceiling assemblies, including UL Designs L505, L511, L536, L538, L541, L556,

Material:

Steel

Max Drywall Thickness:

1.181 in.

Mounting Procedure:

Ceiling

NSF Approved:

Operating Frequency:

50/60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

Pack Type:

Color Box

Power Factor:

>0.9

Quantity In Pack:

Rated For Vapor Tight Fixture:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO'S Fire Rated Recessed Downlights are engineered for use in fire-resistant ceiling construction and are certified for 2-hour fire protection when installed in most floor-ceiling assemblies, including UL Designs L505, L511, L536, L538, L541, L

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

13WLED/6/CFR/CCT/SLF/RD/FL/RND

Sloped Ceiling Compatible:

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Color:

White

Trim Material:

Steel

Wattage Selectable:

Weight Lb.:

1.82
