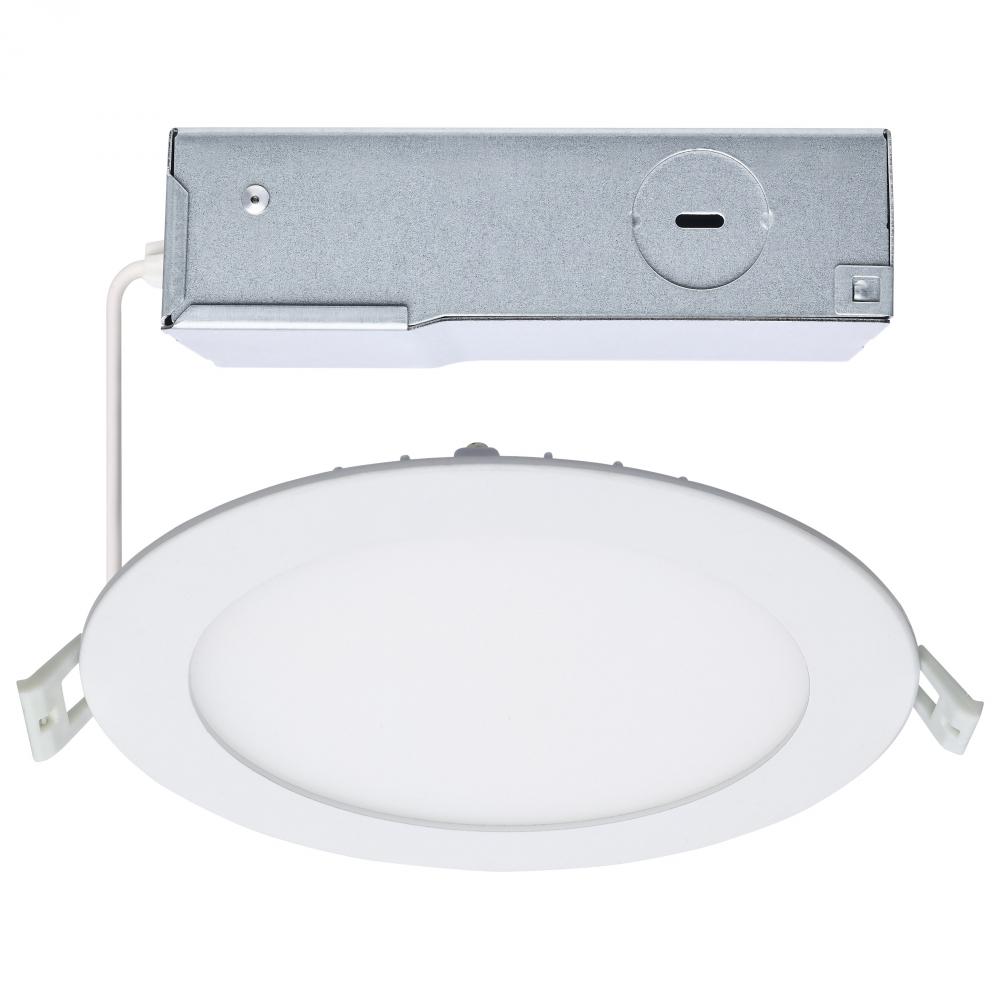

12 Watt LED Direct Wire Downlight; Edge-lit; 6-Inch; CCT Selectable; Round; Remote Driver (X9RAM)

Image may not reflect selected features

No Image
Available

12 Watt LED Direct Wire Downlight; Edge-lit; 6-Inch; CCT Selectable; Round; Remote Driver

BASE PRICE:

/ / 1

($28.99 / 1)

WAS

Call for Price

Item #:

X9RAM

Dimensions:

Height: 0.99"

Width: 6.75"

Finish:

White

Availability:

Manufacturer has 7742 items available.

Recommended Items

Description

Details

Downloads

12 Watt LED Direct Wire Downlight; Edge-lit; 6-Inch; CCT Selectable; Round; Remote Driver

Internal #:

X9RAM

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Option:

Energy Star , LED , Prop 65

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

6.75

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.6010

Lumens:

1050L

Ship Carton Height:

6.97

Ship Carton Length:

6.89

Ship Carton Width:

2.17

Warranty:

5-Years

Air Tight:

Yes

Amps:

0.120A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

110

CA Prop-65:

Lead

Carton Cubic Feet:

0.0603

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2025 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Closet Rated:

Yes

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

120V only

Dimming Type:

Line Voltage

Efficacy:

87.50 LPW

ES Category:

Downlight Recessed

ES Unique ID:

4480264

FCC Compliant:

Yes

Feature 1:

White Finish

Feature 10:

Airtight Rated

Feature 2:

6-Inch Round

Feature 3:

1050 Lumens

Feature 4:

12W LED is a perfect replacement for 75W Incandescent applications

Feature 5:

CCT Selectable 2700K/3000K/3500K/4000K/5000K

Feature 6:

90 CRI

Feature 7:

110-Degree Beam Angle

Feature 8:

Wet Location Rated

Feature 9:

IC Rated

Finish Family:

White

Fixture shape:

Round

Has Camera:

Has Driver:

Yes

Has Emergency Battery:

IC Rated:

Yes

Incandescent Equivalent:

75W

Indoor Outdoor:

Indoor and Outdoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO NUVO'S S11827R1Plus Series LED Slim Fit Downlights offer exceptional performance and a sleek white 6-inch round trim. ColorQuick Technology allows for the selection from five CCT choices at installation to create the perfect atmosphere for any sp

Material:

Aluminum

Mounting Height:

1.34

Mounting Length:

6.18

NSF Approved:

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Color Box

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO'S Plus Series LED Slim Fit Downlights offer exceptional performance and with round and square trims in white or black finish, they're a great choice for a variety of decorative styles. ColorQuick Technology allows for the selection from

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

12WLED/DW/EL/6/CCT-SEL/RND/RD

Sloped Ceiling Compatible:

Yes

Specification Notes:

Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Color:

White

Trim Material:

Aluminum

Up Down Installation:

Down

Wattage Selectable:

Weight Lb.:

1.12
