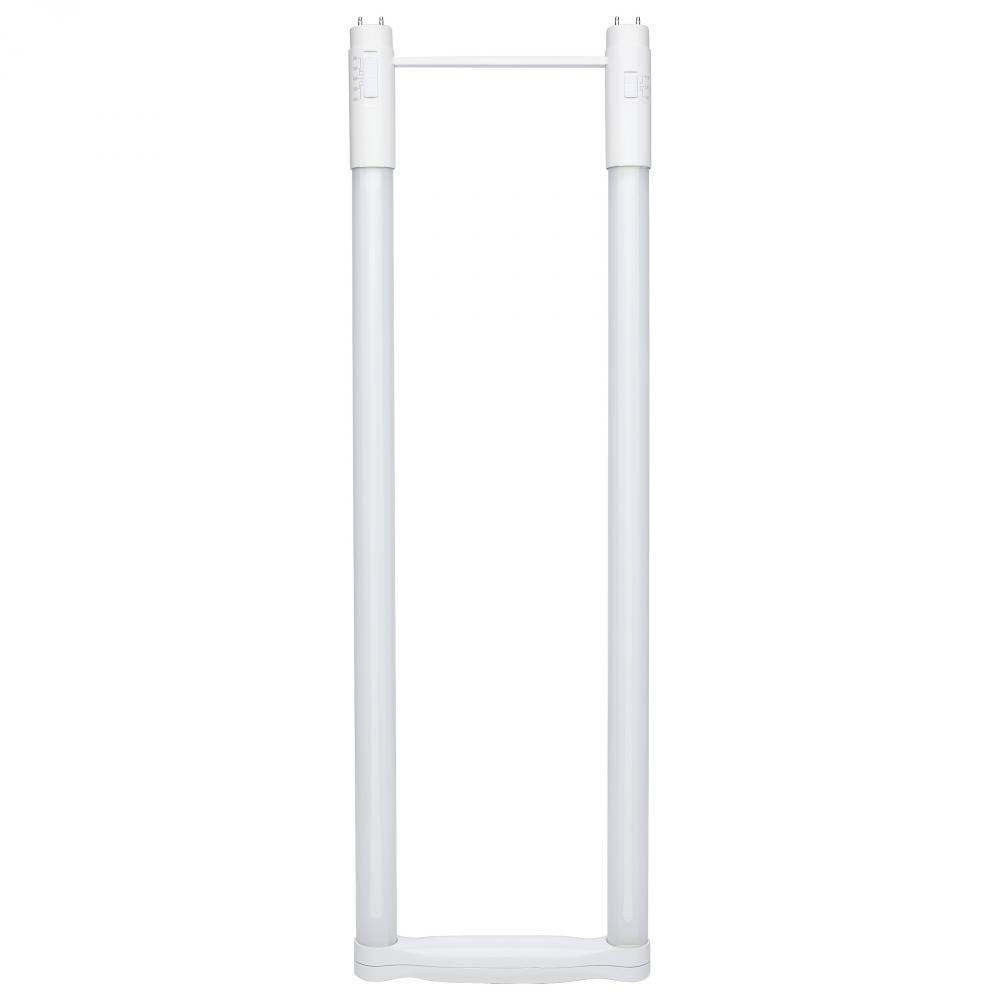

11.5/13/15 Wattage Selectable T8 U-Bend LED; 30K/35K/40K/50K/65K CCT Selectable; 6-Inch; Frost (X6RNV)

Image may not reflect selected features

No Image
Available

11.5/13/15 Wattage Selectable T8 U-Bend LED; 30K/35K/40K/50K/65K CCT Selectable; 6-Inch; Frost

BASE PRICE:

/ / 1

($25.99 / 1)

WAS

Call for Price

Item #:

X6RNV

Dimensions:

Width: 0.96"

Finish Family:

White

Availability:

Manufacturer has 15949 items available.

Description

Details

Downloads

11.5/13/15 Wattage Selectable T8 U-Bend LED; 30K/35K/40K/50K/65K CCT Selectable; 6-Inch; Frost Finish; 120-277 Range Voltage

Internal #:

X6RNV

Category:

Light Bulbs

Subcategory:

LED Bulbs

Category:

LED

Sub-Category:

LED T8 U Bend

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/3500K/4000K/5000K/6500K

Bulb Shape:

Diameter:

0.96

EA Length:

23.03

Harmonized Codes:

8539.52.0051

Length:

22.43

Lumens:

1800L/2000L/2200L

Shap Carton Width:

1.22

Ship Carton Height:

7.24

Ship Weight:

0.76

Warranty:

5-Years

Weight:

0.55

BAA Compliant:

Ballast Bypass Direct:

Dual

Ballasting Requirements:

Ballast required (Type A) or Ballast Bypass (Type B)

Beam Spread:

210

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Frost

Carton Cubic Feet:

0.1177

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Daylight

Country Of Origin:

China

CRI:

80+

Dimmable Function:

Only in Type A mode; Check Ballast MFG for Dimmer Compatibility

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-GDKRYT

DLC Primary Use:

Dual Mode Internal Driver (UL Type A and Type B)

Efficacy:

156.52/153.85/146.67 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

CCT and Wattage Selectable

Feature 2:

Type A/B Ballast Bypass

Feature 3:

NSF Approved

Feature 4:

Single and Double Ended Wiring

Feature 5:

Full Glass Housing

Feature 6:

6 inch Leg Spacing

Feature 7:

50,000 Hour Functional Life

Feature 8:

5 Year Warranty

Flourescent Equivalent:

32W

Has Camera:

Has Emergency Battery:

Housing Color:

White

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures. Direct replacement for 32W T8 U6 lamps only.

IOT Enabled:

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type A/B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Leg Spacing:

5.98

Lens Finish:

Frost

Lens Material:

Glass

Location Rating:

Damp

Long Description:

SATCO NUVO's S18413 LED filament U-Bend lamp with 6-inch leg spacing, delivers versatile and efficient lighting solutions for a range of applications. This lamp consumes significantly less energy than its fluorescent counterpart and features a much lon

Material:

Glass

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO offers LED filament U-Bend lamps with both 1-inch and 6-inch leg spacing, delivering versatile and efficient lighting solutions for a range of applications. These lamps consume significantly less energy than their fluorescent counterparts and fe

SDS class:

LED_Lamp

Short Description:

15T8/U6/LED/5CCT/DUAL

Style:

Utility

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Watts:

11.5W/13W/15W
